Description

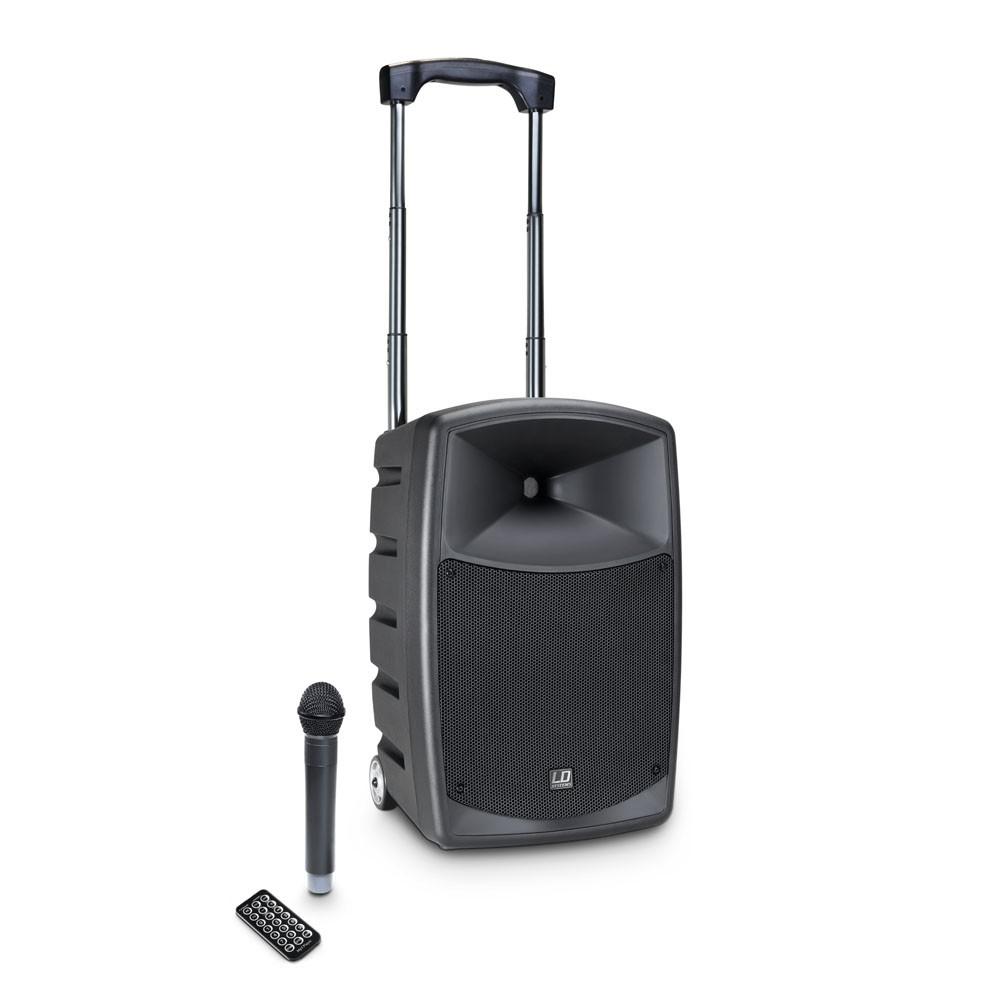

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10″ custom woofer and a 1″ compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.
The Roadbuddy relies fully on wireless transmission: it has an UHF radio receiver which operates with 655 – 679 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power(LDRBUD10B6) or as an alternative a headset microphone with belt pack (LDRBUD10HSB6) and an IR-remote control for the player are included.
For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.
The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
| Product number: | LDRBUD10B6 |
|---|---|
| Product type: | Battery-powered PA speaker |
| Low/mid driver dimensions: | 10″ |
| Woofer size: | 254mm |
| Woofer magnet: | Ferrite |
| Woofer brand: | Custom-made |
| HF driver dimensions: | 1″ |
| HF Driver Size: | 25.4mm |
| HF driver magnet: | Ferrite |
| HF driver brand: | Custom-made |
| Amplifier: | Class D |
| RMS: | 120W |
| Peak power: | 480W |
| Frequency response: | 55 – 18000Hz |
| SPL (1W/1m): | 96dB |
| Max. SPL: | 115dB |
| Protection circuits: | overload protection, short circuit, over-current |
| Controls: | low, Total volume, high, Echo, Mic 1 Level, CD / Tape IN Level, Mic 2 Level, AUX / MP3 switch |
| Indicators: | Power, Charge/battery status |
| Media player | |
| Supported media: | Bluetooth, SD Card, USB stick |
| Supported formats: | WAV-CD, WMA file, MP3 file |
| Media player controls: | Play / Pause, Stop, Previous Track, Next Track, Repeat, equalizer, Mode (Menu / Bluetooth /SD / USB) |
| Media player display elements: | Lighted multifunctional LC display |
| Line inputs: | 1 |
| Line input connectors: | 2 x RCA, 3.5 mm jack, 2 x XLR, 6.3 mm jack |
| Mic inputs: | 2, 6.3 mm jack, 2 x XLR |
| Wireless Unit | |
| Transmission frequency range: | 655 – 679MHz |
| Modulation Type: | FM |
| Channels: | 16 |
| Frequency Response Wireless Unit: | 50 – 17000lx @ 1mHz |
| Controllers Wireless Unit: | Mute Level (Squelch), ASC, Power / Volume, Value Down, Value Up |
| Indicators Wireless Unit: | RF (LED), AF (LED), LED Display |
| Connections Wireless Unit: | nTNC for receiver antenna |
| RF Transmitter Power Output: | 10mW |
| Handheld Microphone Weight: | 0.285kg |
| Handheld Microphone Material: | aluminium |
| Operating voltage: | Switching power supply, 220 V – 240 V AC / 50 Hz, 100 V – 120 V / 60 Hz |
| Rechargeable batteries: | 12 V / 5 Ah |
| Cabinet material: | polypropylene |
| Cabinet construction: | vented |
| Width: | 415mm |
| Height: | 525mm |
| Depth: | 328mm |
| Weight: | 16,5kg |
| Other features: | Transport casters, extendable handle, transport handle, IR Remote for Media Player, Stand mount 36 mm |
